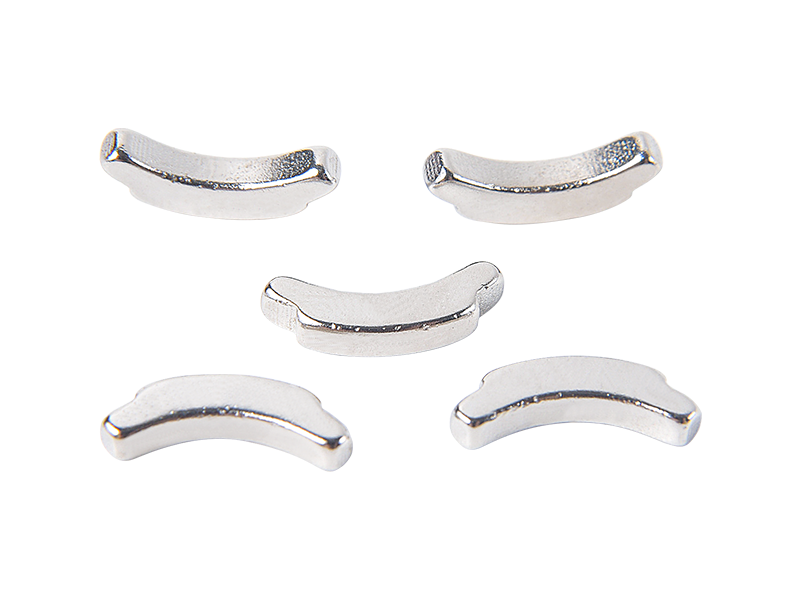

Other Irregular Shape, Can Be Manufacture According To Customer's Sample Or Blueprint.
| Magnetic Characteristics & Physical Properties of Sintered Ferrite | |||||
| Grade | Iso/Anisotropic | Remanence |
Coercivity | lntrinsic Coercivity |
Max.Energy Product |
| ISO/ANISO | BrmT (KGs) |
bHc kA/m bHc (KOe) |
iHc kA/m iHc (KOe) |
(BH)max KJ/m3 (MGOe) |
|
| Y10 | ISO | 200-235 2.0-2.35 |
125-165 1.57-2.01 |
210-280 2.64-3.52 |
6.8-9.5 0.8-1.2 |
| Y15 | ISO | 240-270 2.4-2.7 |
160-170 2.01-2.43 |
200-260 2.33-3.12 |
9.5-15 1.3-2.1 |
| Y25 | ANISO | ≥370 ≥(3.7) |
≥168 ≥2.1 |
≥176 ≥2.2 |
≥23.9 ≥3.0 |
| Y30 | ANISO | ≥380 ≥(3.8) |
≥176 ≥2.2 |
≥180 ≥2.225 |
≥27.5 ≥3.45 |
| Y30BH | ANISO | ≥380 ≥(3.8) |
≥224 ≥2.8 |
≥232 ≥2.9 |
≥27.25 ≥3.1 |
| Y30H-1[C-8] | ANISO | ≥385 ≥(3.85) |
≥235 ≥2.95 |
≥245 ≥3.07 |
≥30.02 ≥3.8 |
| Y30H-2 | ANISO | ≥400 ≥(4.0) |
≥275 ≥3.45 |
≥310 ≥3.89 |
≥31.6 ≥4.0 |
| Y35 | ANISO | ≥410 ≥(4.1) |
≥220 ≥2.76 |
≥225 ≥2.82 |
≥31.6 ≥4.6 |
| Remark: ☆The above-mentioned data of Magnetic parameters and physical properties are given at room temperature. |
|||||
